Three-piece stainless steel ball valve with full bore and butt-weld ends -  V - 005 BML PN 63


Application
Shut-off valve for aggressive and non-
aggressive liquids, poisonless, inexplosive
gases and loose media mainly in food and
chemical industries for service pressures up to
PN 63 and temperatures from -50°C to 230°C.
It is suitable also for service where
contamination of service medium by
corrosive products is undesirable. Service
medium can flow in both directions. The
valve is not suitable for flow regulation.

Connection

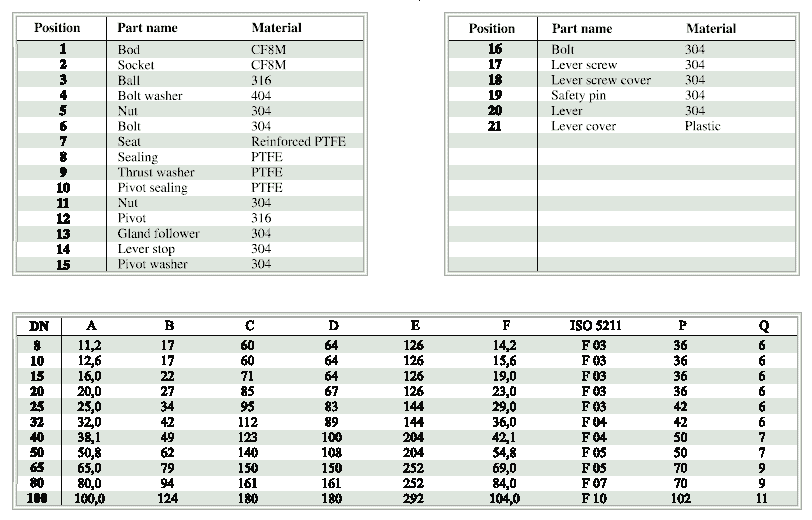

Basic connecting and end-to-end dimensions
are given in the table below.

Installation
The valve can be installed into vertical or
horizontal piping.

Operation
The valve is operated by a lever turning
by 90°.
