Application
Mechanisms are intended for control of
sewage gate valves.
Technical description
Drive is fit with spun gearing 1:3 for sewage
gate valves S 60 ( that is from DN 700).
Operation is done by a hydrant wrench 32x32 mm.
Material
Anchor base and bolts
carbon steel
Stem nut, bearing,
spun gearing and gear box grey cast iron
Stem
carbon steel
Installation

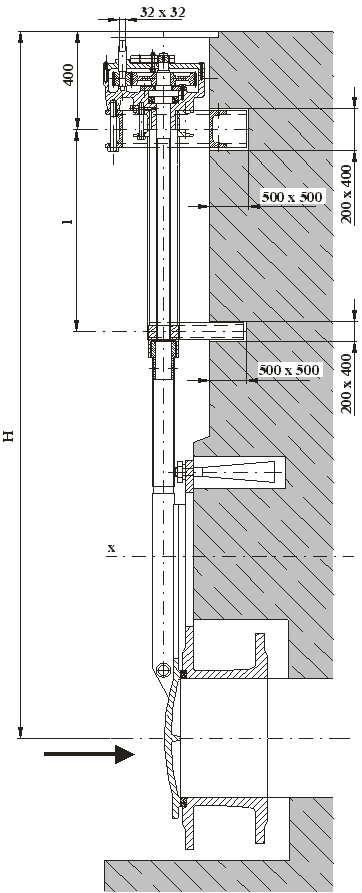

Sewage gate valves actuator must be installed
and centered in the pit before setting in
concrete so as the gate base (or extension bar)
do not get stuck when moving.
Note
Hmin - minimum depth, when the sewage
gate valve can be as yet fully open.
Weight is valid for Hmin.
Weights are informative only and for
configuration of Hmin including sewage gate
valve.
X - optional center bearing location,
1pc/2,5 m
|
