Application
It is used as water direct-reading instrument
for steam-generator tanks or for fixed hot-
water bin, for service pressures up to PN 25
and temperatures up to 250°C. The indicator
must not be used for toxic, aggressive or
crystallic substances.
Technical description
Level indicator has upper and inferior head,
groove with reflex glass, and control valve
V 10 151 4100 DN 10. Head comprises
protective ball cap and quick-closing, arm
controlled valve with weight.
Level indicator enables max. groove
inclination 30°. Control valve is for venting
and sludging, when the level indicator is shut-
down. Reflex glasses enable contrast fluid
level observation.

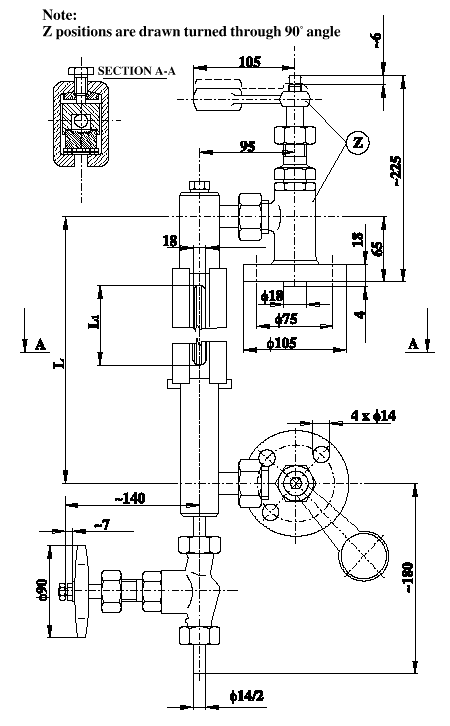

Connecting and face-to-face dimensions
Connecting and face-to-face dimensions are
given in the table below.
Material
Holder head body carbon steel
Level indicator glass cast tempered glass
Stem, plug stainless steel
Installation
Level indicator is installed vertically or to a
sloping position with the control valve in low
position.
|
