Sewage gate valve - S 60 005-601 PN 0,8


Application
One-way shut-off valve for circular sewage
outlets for clean and slightly polluted sewage
water, for maximum service overpressure
0,08 MPa and temperature 120°C.

Technical description
Cast iron frame is set into concrete and
secured by two anchor bolts. Closing plate is
guided in the frame. The plate is pressed to the
frame by pressure of flowing liquid. Sealing
surfaces are of base material.

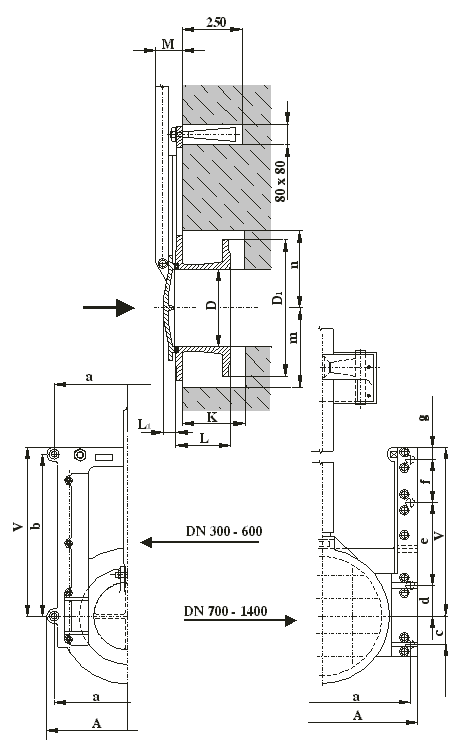

Connecting and end-to-end dimensions
Dimensions are given in the table below.

Material
Frame and closing plate grey cast iron
Frame sealing surfaces
- alloys of heavy non-ferrous metals
055686-BCu6OZnSi900/880

Testing
Only functional test is performed.

Installation
The sewage gate valve must be installed in
horizontal outlets with its actuation upwards.
One-way pressure must be in arrow direction.
The valve must be installed vertically to
ensure that the plate runs smoothly in the
frame. Once the valve has been correctly
positioned, the frame and anchor bolts are
concreted in. Beveled surfaces must be
preserved by a preservative agent.

Operation
The sewage gate valve can be operated:
- below ground with a hydrant wrench via
lifting mechanism (S 60 001-601)
- by a handwheel mounted on a stand
(S 60 002- 601)
- by electric actuator on a stand (S 60 003-601).
The length of extending rod then depends
according to the depth of a gate valve under
floor.
